VHF Antenna options

Antenna mounting bracket - P/N 2090-02-19

Mounting bracket for VHF mobile whip antenna.

Collapsible whip 1.8 metres - P/N 2085-02-02

Collapsible 1.8 metres whip – colour black.

Note:- Requires 5 W Gooseneck P/N 2085-02-01 or 25 W Gooseneck P/N 2086-02-01 to connect the whip antenna to the transceiver.

Tape whip antenna 1 metre - P/N 2085-02-03

1 metre flexible whip antenna.

Note:- Requires 5 W Gooseneck P/N 2085-02-01 or 25 W Gooseneck P/N 2086-02-01 to connect the whip antenna to the transceiver.

5 W Gooseneck - P/N 2085-02-01

5 W Gooseneck for connecting collapsible whip antenna P/N 2085-02-02 or tape whip antenna P/N 2085-02-01 to the PRC-2080+ 5 W VHF Tactical transceiver.

25 W Gooseneck - P/N 2086-02-01

25 W Gooseneck for connecting collapsible whip antenna P/N 2085-02-02 or tape whip antenna P/N 2085-02-01 to the PRC-2081+ 25 W VHF Tactical manpack

Tactical rapid deployment antenna with 20 metres RG-58 coaxial cable and connectors - P/N 2086-02-10

Field deployable broadband 30 – 88 MHz antenna complete with 20 metres RG-58 coaxial cable, TNC adaptor and N-type connectors.

Tactical rapid deployment antenna with 10 metres RG-58 coaxial cable and connectors - P/N 2086-02-11

Field deployable broadband 30 – 88 MHz antenna complete with 10 metres RG-58 coaxial cable, TNC adaptor and N-type connectors.

Military VHF 30-88 MHz aluminium whip and base antenna - P/N 2082-02-10

Military VHF whip antenna. Military grade rugged aluminium anodized. Connected with spring loaded steel bayonet fixing. Deployed length 2.7 metres.

Includes:-
– Military VHF whip antenna P/N 2082-02-01
– Military VHF antenna base P/N 2082-02-02
– 5 metres coaxial cable P/N 2082-00-07

Military VHF 30-88 MHz fibreglass whip and base antenna - P/N 2087-02-10

Military grade fibreglass whip antenna is a ruggedly, constructed VHF centre-fed whip antenna. Deployed length 3.45 metres.

Includes:-
– Military VHF whip antenna P/N 2087-02-01
– Military VHF antenna base P/N 2087-02-02
– 5 metres coaxial cable P/N 2082-00-07

RG-58 coaxial cable with “N” type connectors 20 metres - P/N 2084-02-02

20 metres of RG-58 coaxial cable with “N” type connectors.

RG-213 coaxial cable with “N” type connectors 20 metres - P/N 2084-02-01

20 metres Coaxial cable for connecting military VHF 30-88 MHz whip antenna to PRC-2080+ series.

30 to 108 MHz centre-fed ground independent whip with stand-off bracket to suit composite masts - P/N 2083-02-01

Frequency range 30 – 108 MHz, power input 100 Watt, gain -6 dBi – +2 dBi , length 3 m, environmentally designed to comply with MIL-STD 810G.

Note:- Requires 20 metres RG-213 coaxial cable P/N 2084-02-01

30 to 108 MHz elevated wideband VHF antenna - P/N 2083-02-03

Rugged broadband antenna designed for high performance in the VHF frequency range 30 – 108 MHz. Used for tactical applications using a portable mast or, for base-station mounting on towers or other fixed platforms. 4.8 metres height, with 3.2 metres width, wind rating of 170 Kph and is NATO green.

Note:- Requires 20 metres RG-58 coaxial cable P/N 2084-02-02

Rapid deployment composite mast - 9.4 metres - P/N 2083-02-02

Retracted height 1.8 metres, Weight 7.4 kg (complete), deployment time 10 mins typical. Colour Olive Green

10 metres air transportable aluminium mast - nylon guys - P/N 2090-02-12

Suitable for rapid deployment of VHF base antenna’s. With Nylon guys and ground mounting. Packed length 2 metres, suitable for air-freight.

Includes:-
– Offset bracket and pulleys
– Nylon guys, guy anchor pegs, pulleys and halyard
– Installation instructions

RELATED PRODUCTS

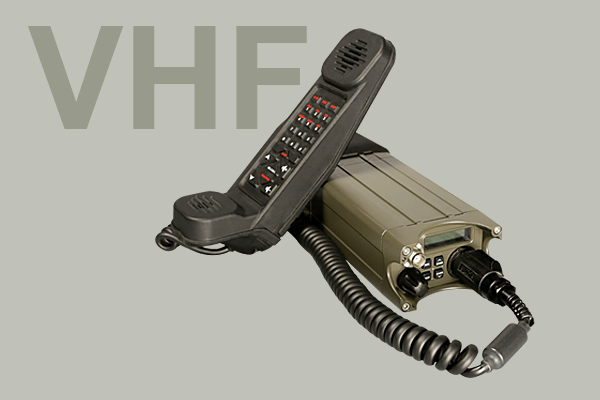

PRC-2080+ 5 W VHF Hand Portable package
PRC-2081+ 25 W VHF Manpack package

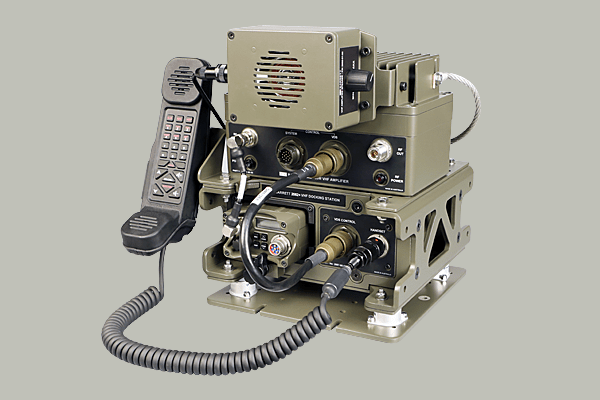

PRC-2082+ 50 W VHF Mobile package

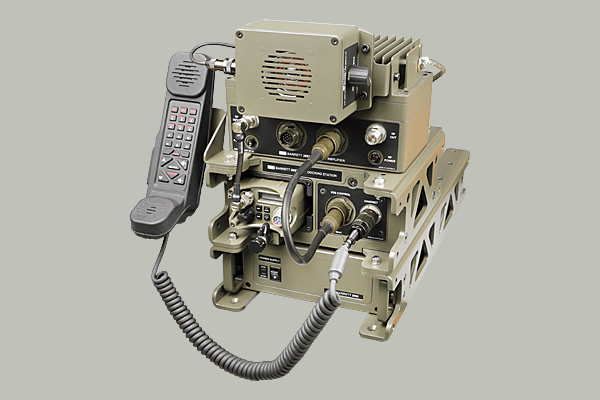

PRC-2084+ 50 W VHF Base package

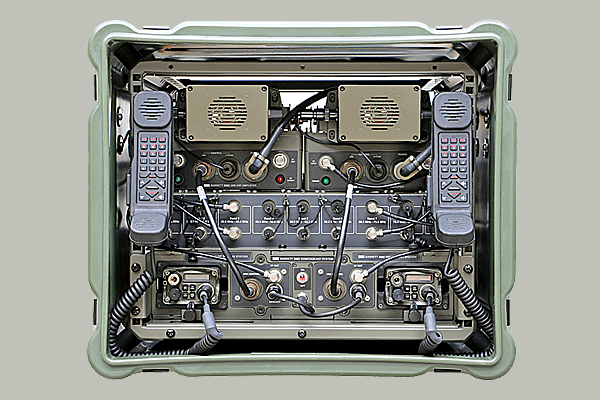

PRC-2083+ 50 W VHF Re-broadcast System
