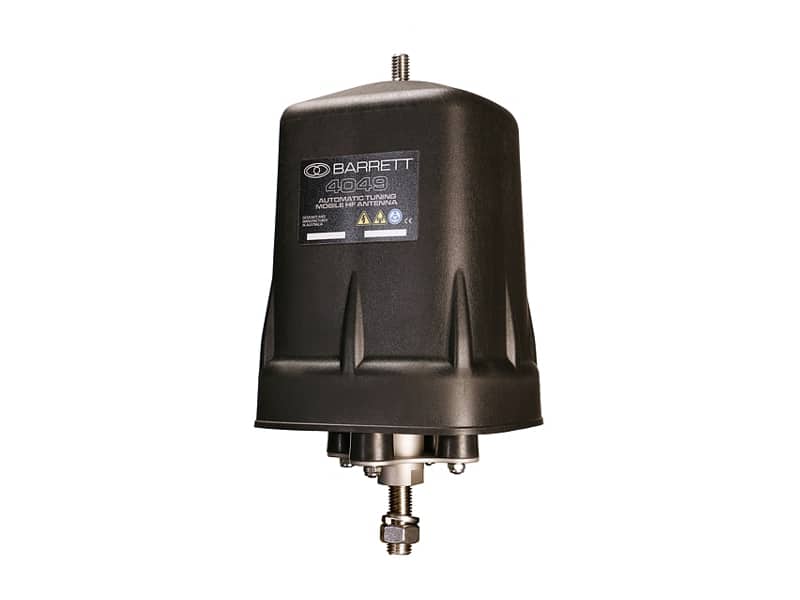

4049 AUTOMATIC TUNING MOBILE HF ANTENNA

Providing a frequency coverage of 1.5 to 30 MHz, the Barrett 4049 (P/N: BC404901 Black) features rapid tuning (typically less than 1.5 s) and low power consumption capabilities.

The active tuning elements of the antenna are housed in a waterproof, high-impact resistant moulding. This housing incorporates a heavy duty anti-vibration mount at its base.

The Barrett 4049 is supplied with a two piece fibreglass MIL-STD whip and spring. An optional NVIS Kit (P/N 2019-01-10) is available in the form a single flexible whip section of 3.5 metres.

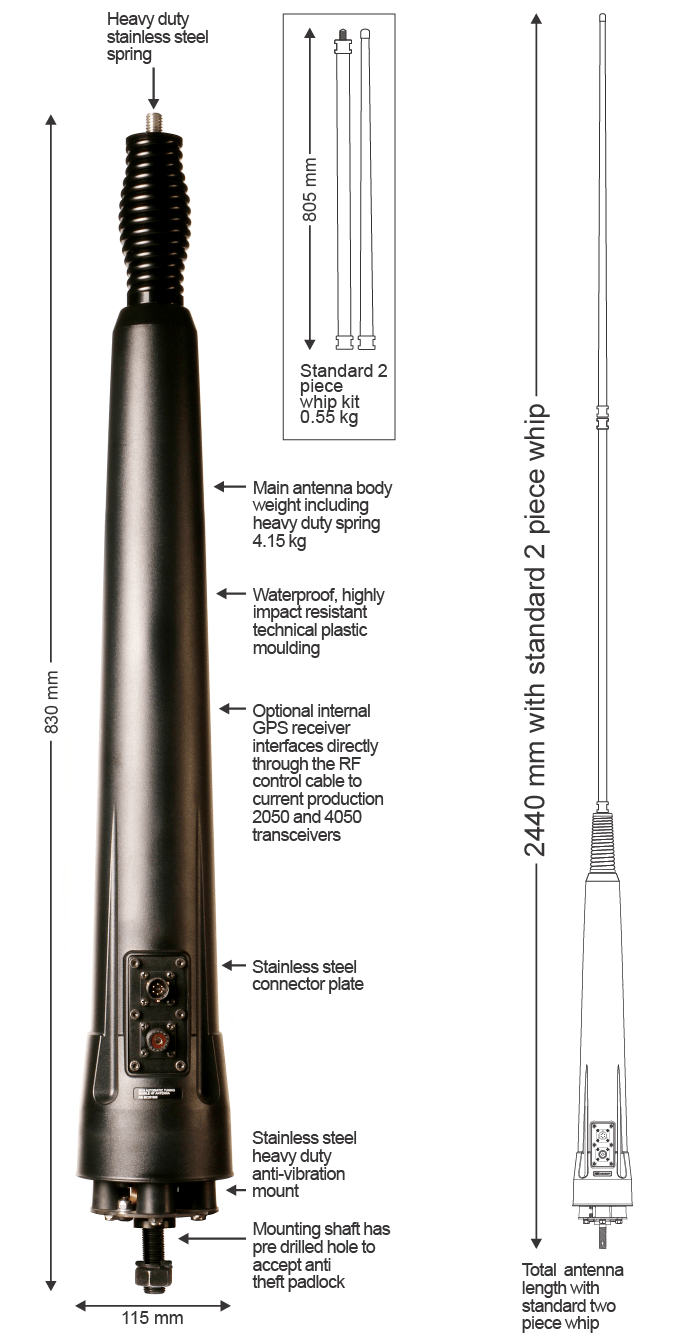

Dimensions

Features

150 W (Digital, Voice and Data)

The Barrett 4049 ATU is fitted with an internal GPS. This internal unit can be used to provide GPS data as part of a GPS tracking network without the need to install a separate GPS, simplifying the system installation.

When paired with a Barrett 4000 series HF Transceiver, the 4049 memory tune feature eliminates the need to retune an antenna after a channel change. When returning to a previously tuned channel, the transceiver sets the 4049 with a stored tuning result in less than 100 ms.

The active tuning elements of the antenna are housed in a waterproof, high-impact resistant moulding. This housing incorporates a heavy duty anti-vibration mount at its base. Even with its rugged construction, the Barrett 4049 weighs only 3.65kg.

The Barrett 4049 is supplied with a two piece fibreglass MIL-STD whip and spring.

An optional NVIS Kit (P/N 2019-01-10) is available in the form a single flexible whip section of 3.5 metres.

The 4049 is supplied as standard with a 6 metre composite RF control cable. A 10 metre RF control cable is available as an optional accessory (P/N 4019-00-05) as in an extension adapter kit (P/N BCA401914).

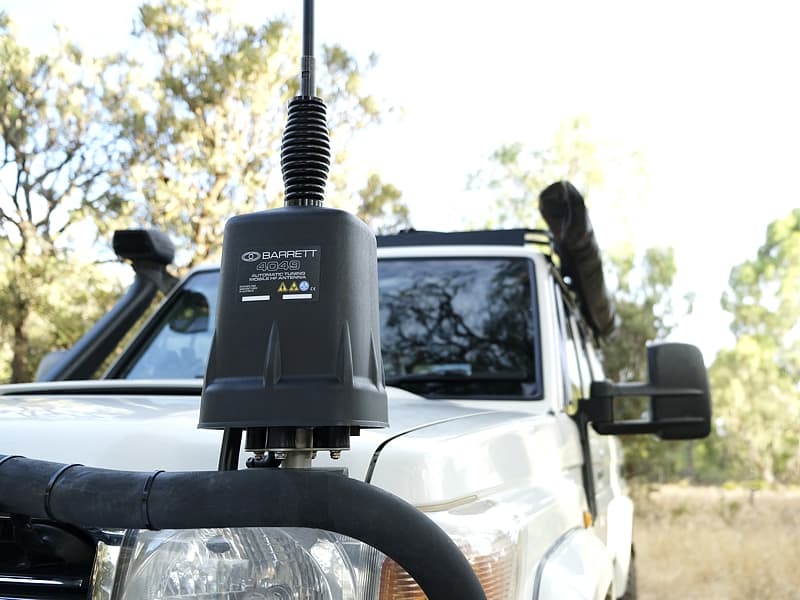

A hole in the mounting stud can accommodate a padlock to prevent the antenna being unlawfully removed from the vehicle.
