The PRC-4080 30–175 MHz VHF SDR transceiver is a Combat Net Radio (CNR) designed for multi-role tactical military and security applications. The PRC-4080 is both compact, lightweight, and extremely simple to operate in demanding mission critical conditions.
The PRC-4080 is part of the Barrett family of transceivers that are field proven in over 150 countries, on every continent and in all environments.

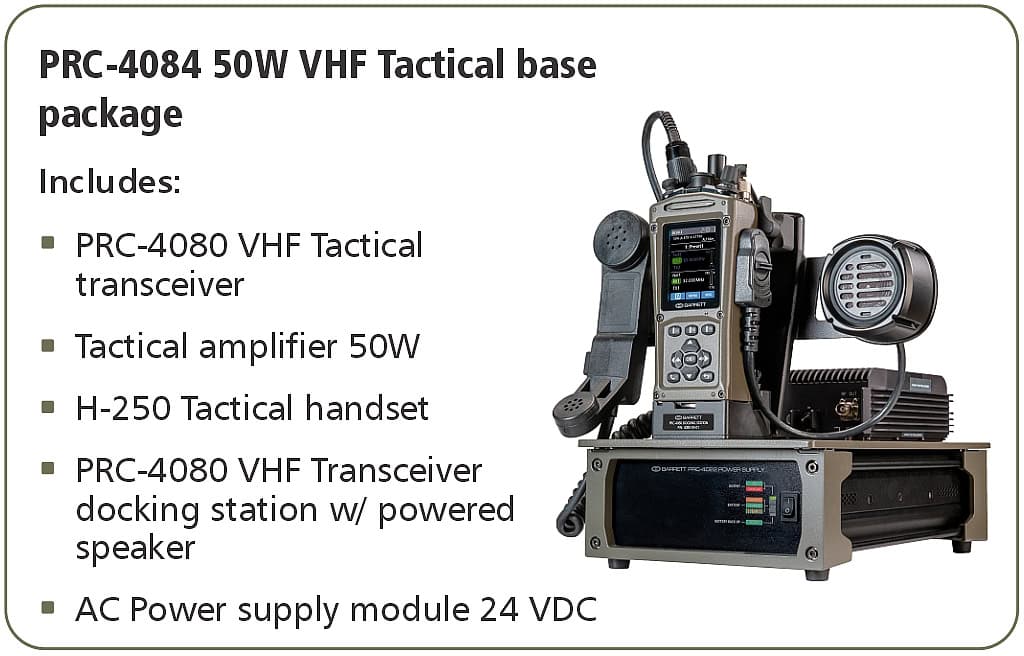

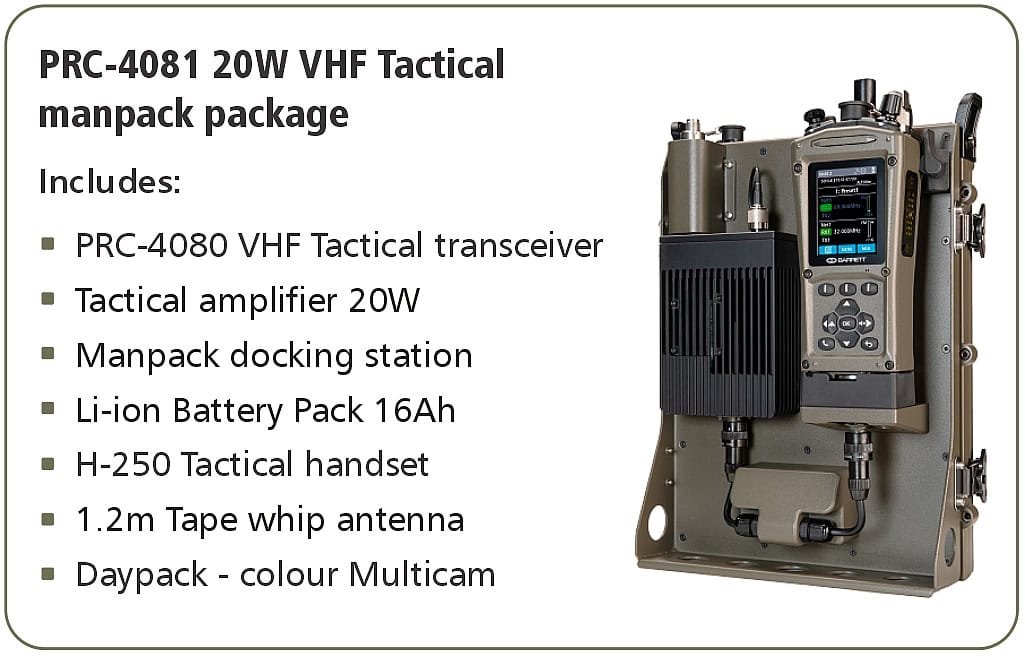

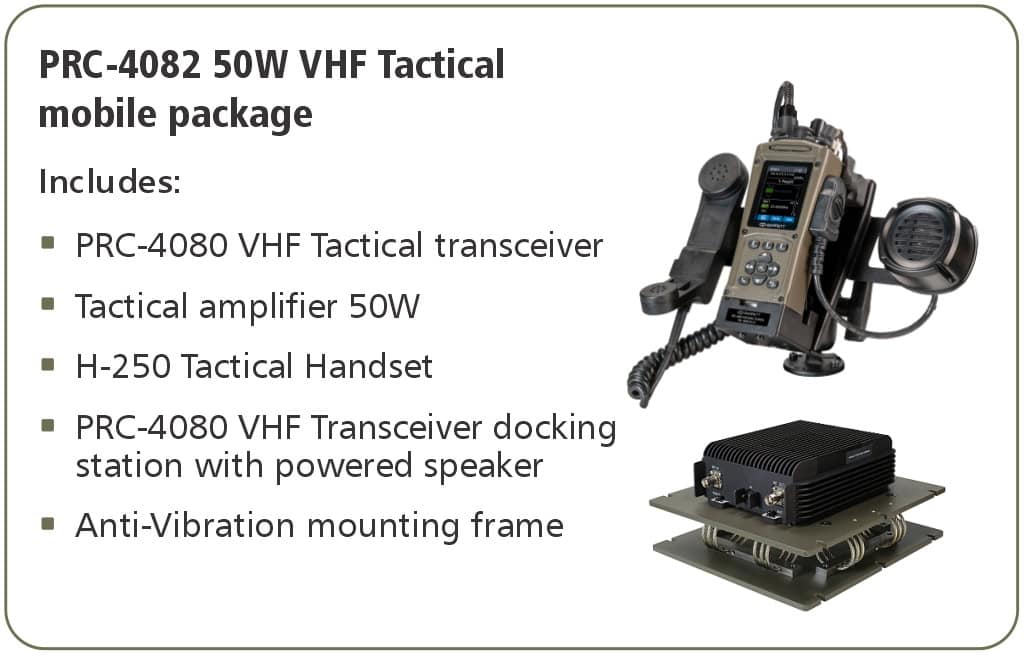

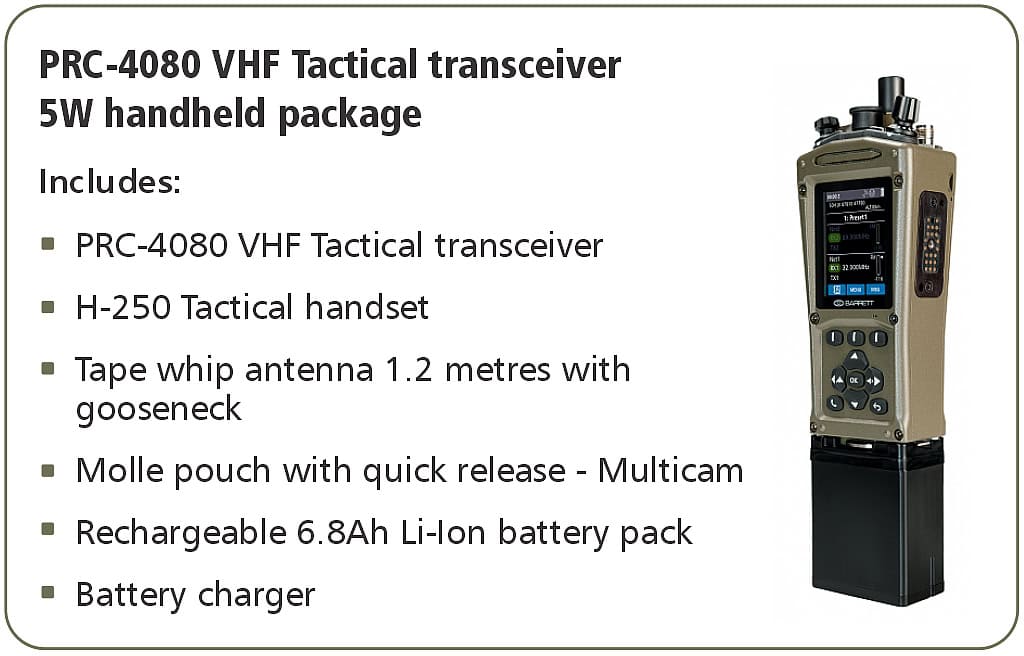

5W Handheld, 20W Manpack, 50 Mobile, 50W Base station.
Dual Receiver / Dual Net monitoring.
Call types: Selcall, Private call, Legacy call, Text message, GPS request, GPS send.
600 – 2400bps TWELP (option).
Built-in GPS with external SMA antenna position distribution waveform, position distribution simultaneously and transparently together with digital voice.
Selectable through radio menu.
1000 Nets capacity.
Net types supported:
Single channel/fixed frequency net
Split channel/fixed frequency net
Channel Scan net
Frequency hopping net
AES-256, DES-56 and Clear Text modes supported for both data and digital voice modes*
(*Option dependant)
Internal fit Data Modem up to 43.2kbps in 12.5kHz bandwidth (option).
300 hops/second (option).
Multiple levels of erase, lock and zeroise, Transceiver Lock/Transceiver Kill.
Multiple languages selectable through front screen. English, Chinese, French, Spanish, Russian, Arabic (software upgrades allow additional languages).
1.05 kg, transceiver + battery. Die-cast Aluminum body.
MIL-STD-810H 501.7 High Temperature
MIL-STD-810H 502.7 Low Temperature
MIL-STD-810H 507.6 Humidity
MIL-STD-810H 509.7 Salt Fog
MIL-STD-810H 506.6 Rain
MIL-STD-810G 514.6 Vibration
MIL-STD-810G 516.6 Shock
IEC60529 IP67
